Lagun

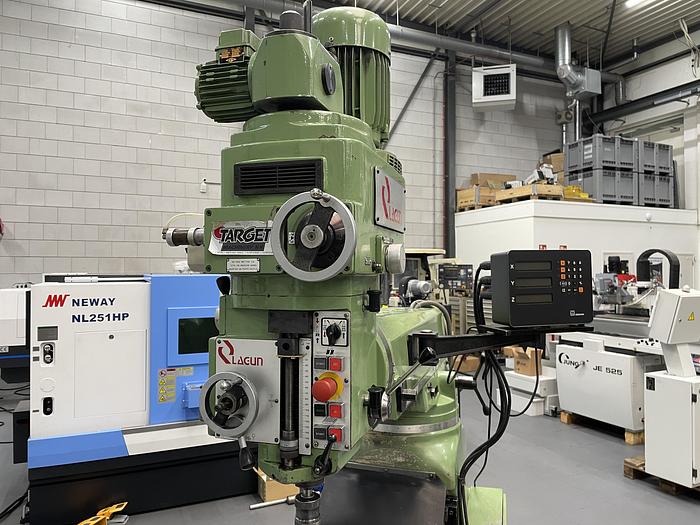

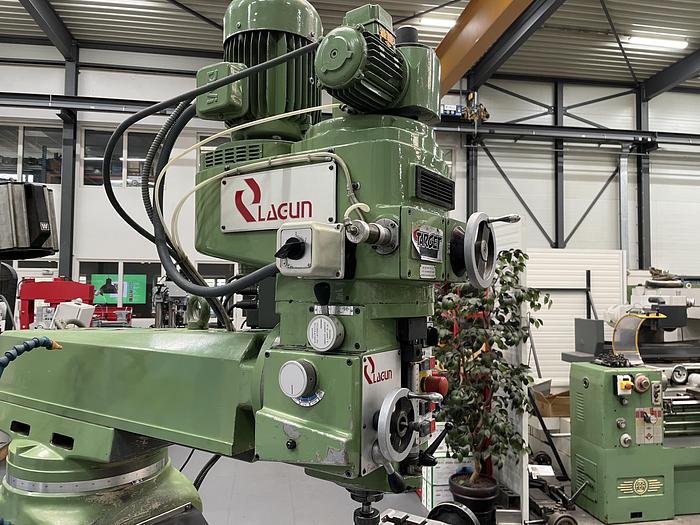

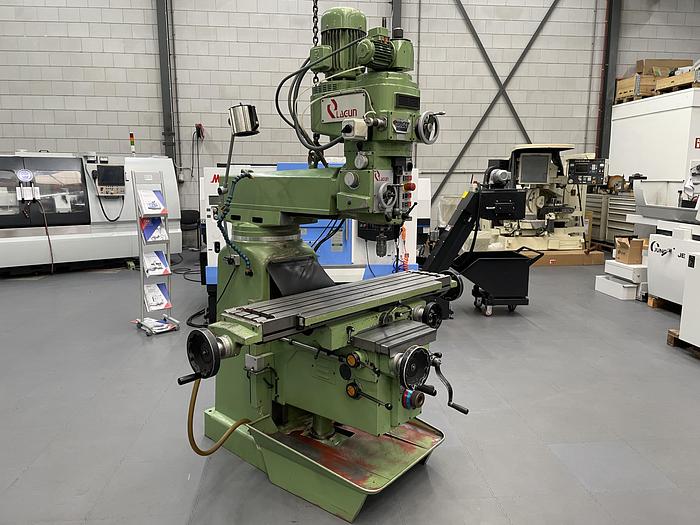

LAGUN turret milling machine model FTV-5 with axis display (X, Y, Z) and oil-hydraulic tool clamping.

Second hand turret milling machine

Brand: LAGUN

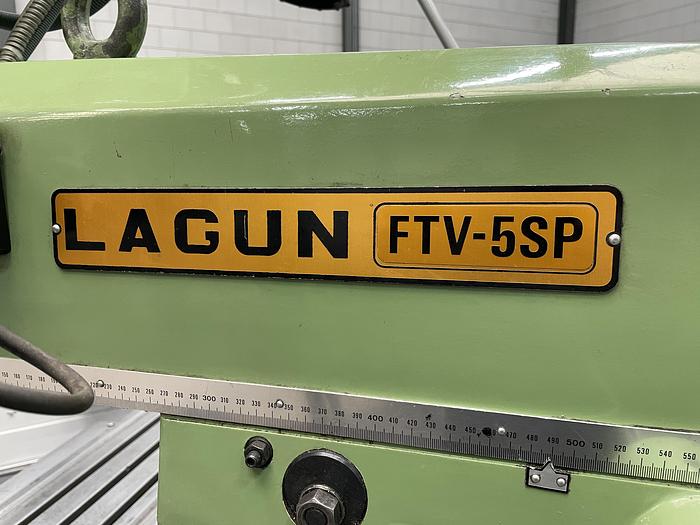

Model: FTV 5

Weight: 2000kg

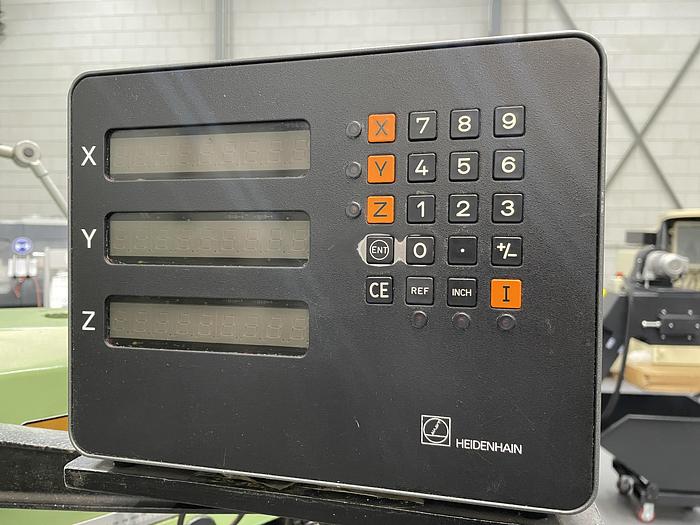

It has a 3-axis display (X, Y, Z)

Oil-hydraulic tool clamping.

Technical description:

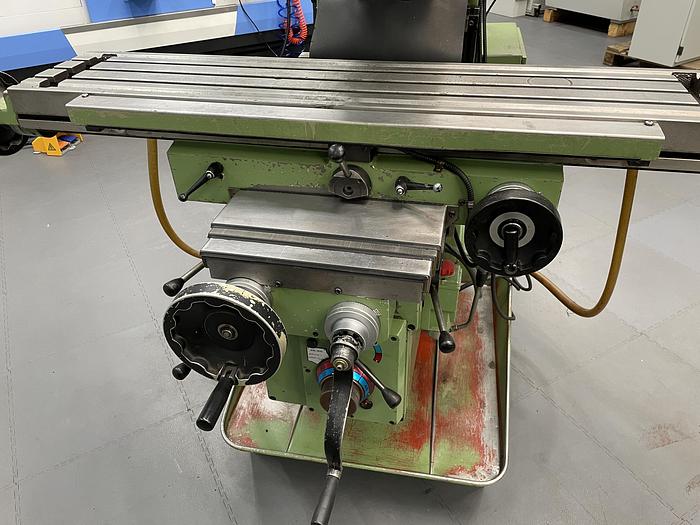

- Work table measures: 1372x280mm

- T-table slots: 3x16mm (Distance between slots: 63mm)

- Routes:

Longitudinal: 800mm

Cross: 345mm

Upright: 400mm

Ram Course: 480mm

- Number of advances: 12

- Longitudinal and transversal advance: 12-576mm

- Vertical advance: 3.6 - 173mm

- Longitudinal and transversal rapid advance: 1650mm

- Vertical rapid advance: 500mm

- Variator head speed range: 60 - 4000mm

- Movement to the right and left of the head 90º

CANE

- ISO 40 cone

- Advances of the spindle per revolution: 0.04 - 0.08 - 0.16mm

- Chrome rod diameter: 110mm

- Spindle course: 150mm

- Distance min/max. from spindle center to body: 170 / 650mm

- Maximum distance spindle to table: 405mm
