Lagun

Lagun

€7.950 (EUR)

ofBel +31 73 - 547 87 69

Beschrijving

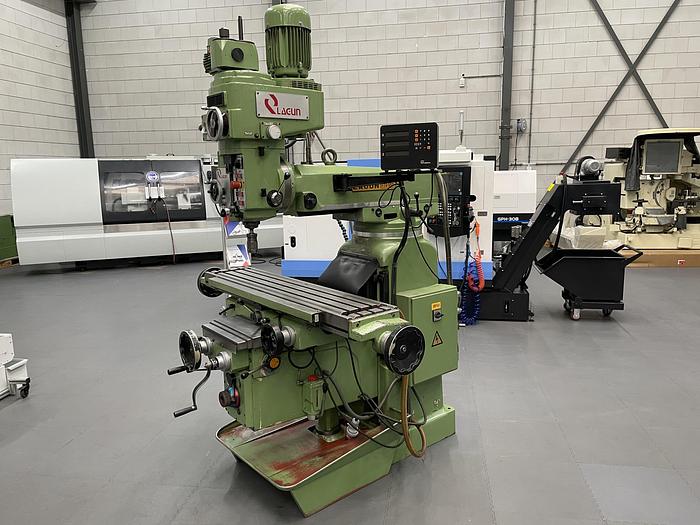

LAGUN turret milling machine model FTV-5 with axis display (X, Y, Z) and oil-hydraulic tool clamping.

Second hand turret milling machine


Brand: LAGUN


Model: FTV 5


Weight: 2000kg


It has a 3-axis display (X, Y, Z)


Oil-hydraulic tool clamping.


Technical description:


- Work table measures: 1372x280mm


- T-table slots: 3x16mm (Distance between slots: 63mm)


- Routes:


Longitudinal: 800mm


Cross: 345mm


Upright: 400mm


Ram Course: 480mm


- Number of advances: 12


- Longitudinal and transversal advance: 12-576mm


- Vertical advance: 3.6 - 173mm


- Longitudinal and transversal rapid advance: 1650mm


- Vertical rapid advance: 500mm


- Variator head speed range: 60 - 4000mm


- Movement to the right and left of the head 90º


CANE


- ISO 40 cone


- Advances of the spindle per revolution: 0.04 - 0.08 - 0.16mm


- Chrome rod diameter: 110mm


- Spindle course: 150mm


- Distance min/max. from spindle center to body: 170 / 650mm


- Maximum distance spindle to table: 405mm


Specificaties

FabrikantLagun
ModelFTV 5
ConditieGebruikt
